Pumps

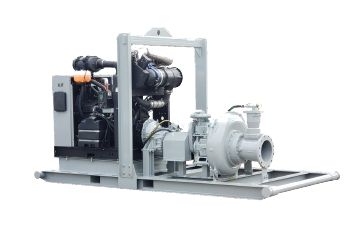

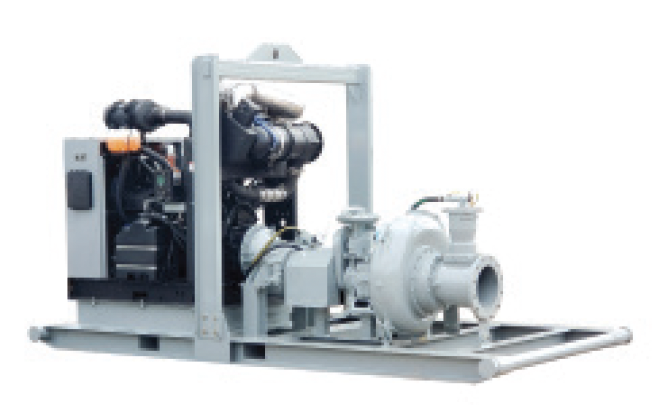

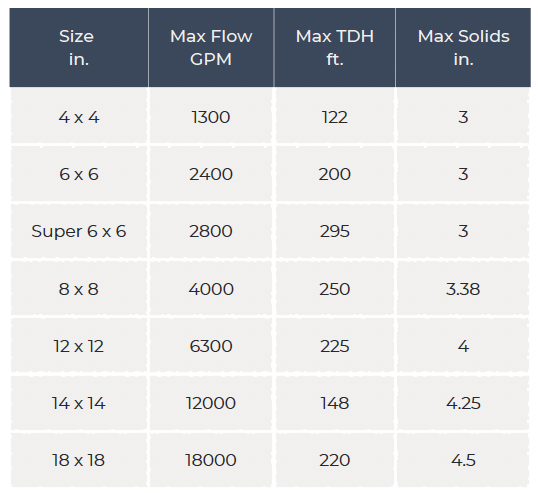

High Volume Pumps
Our fleet of high-volume pumps is robustly designed to exact specifications through a thorough engineering process undertaken in collaboration with top manufacturers. Best-in-class run-dry mechanical seals and rapid pump priming systems allow for peak performance across various applications.
- Vac-Assist Packages 4 – 18″
- Flow Rates up to 19,ooo GPM
- Total Dynamic Head up to 250’/108 PSI
- Programmable Auto-Start/Stop Panels
- Stainless, VFDs, & Electric Options Available

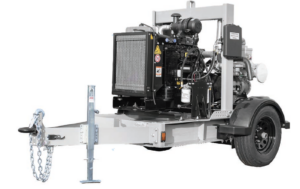

4" High Volume Vac Assist Diesel-Driven
Size: 4″ x 4″
Max Flow: 1520 gpm
Max TDH: 150 ft.
Max Solids: 3″
6" High Volume Vac Assist Diesel-Driven
Size: 6″ x 6″”
Max Flow: 2825 gpm
Max TDH: 195 ft.
Max Solids: 3″
Super 6" High Volume Vac Assist Diesel-Driven
Size: 6 x 6
Max Flow: 3170 gpm
Max TDH: 250 ft.
Max Solids: 3″
Super 8" High Volume Vac Assist Diesel-Driven
Size: 8 x 8
Max Flow: 4630 gpm
Max TDH: 258 ft.
Max Solids: 3.375″
12" High Volume Vac Assist Diesel-Driven
Size: 12 x 12
Max Flow: 6300 gpm
Max TDH: 225 ft.
Max Solids: 4″
Super 12" High Volume Vac Assist Diesel-Driven
Size: 12 x 12
Max Flow: 9,500 gpm
Max Solids: 3.75″
14" High Volume Vac Assist Diesel-Driven
Size: 14 x 14
Max Flow: 12000 gpm
Max TDH: 148 ft.
Max Solids: 4.25″
18" High Volume Vac Assist Diesel-Driven
Size: 18 x 18
Max Flow: 19000 gpm
Max TDH: 220 ft.
Max Solids: 4.5″

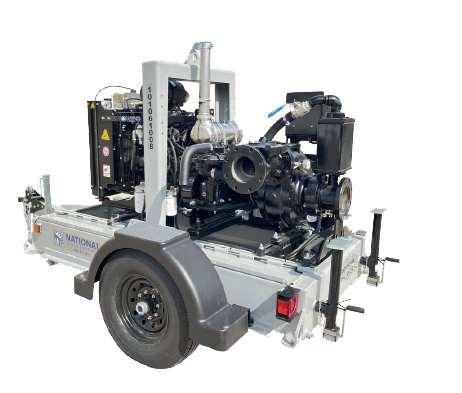

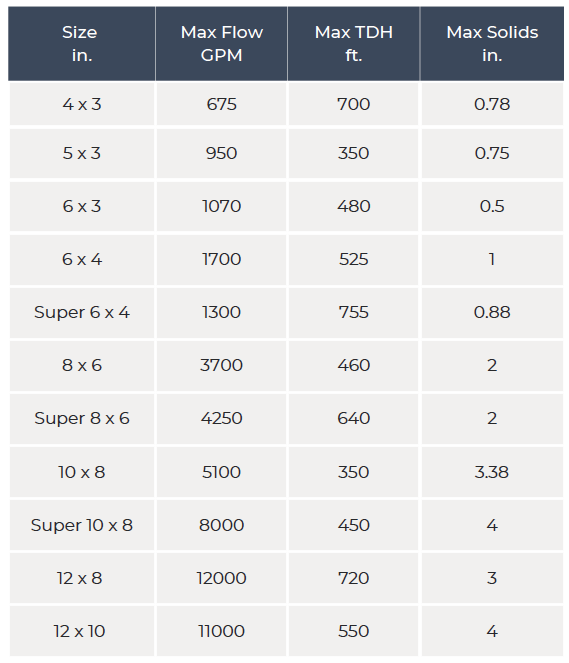

High Head Pumps
High-pressure fluid handling requires special pump packages designed for high head applications. If your job requires pumping over long distances or overcoming a pressurized header system, we offer the high-pressure pumps to handle it.
- Vac-Assist Packages 4 – 12″
- Flow Rates up to 12,ooo GPM
- Total Dynamic Head up to 755’/327 PSI
- Programmable Auto-Start/Stop Panels
- Stainless, VFDs, & Electric Options
Super 4x3 High Pressure Vac Assist Diesel-Driven
Size: 4 x 3
Max Flow: 600 gpm
Max TDH: 575 ft.
Max Solids: 0.75″
5x3 High Pressure Vac Assist Diesel-Driven
Size: 5 x 3
Max Flow: 845 gpm
Max TDH: 285 ft.
Max Solids: 0.75″
6x3 High Pressure Vac Assist Diesel-Driven
Size: 6 x 3
Max Flow: 1090 gpm
Max TDH: 460 ft.
Max Solids: 0.75″
6x4 High Pressure Vac Assist Diesel-Driven
Size: 6 x 4
Max Flow: 3,125 gpm
Max TDH: 500 ft.
Max Solids: 3″
Super 6x4 High Pressure Vac Assist Diesel-Driven
Size: 6 x 4
Max Flow: 1500 gpm
Max TDH: 675 ft.
Max Solids: 0.88″
8x6 High Pressure Vac Assist Diesel-Driven
Size: 8 x 6
Max Flow: 3700 gpm
Max TDH: 460 ft.
Max Solids: 2″

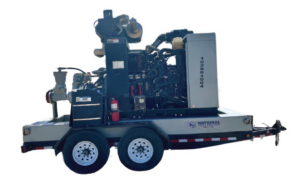

Super 8x6 High Pressure Vac Assist Diesel-Driven
Size: 8 x 6
Max Flow: 4250 gpm
Max TDH: 640 ft.
Max Solids: 2″
10x8 High Pressure Vac Assist Diesel-Driven
Size: 10 x 8
Max Flow: 6400 gpm
Max TDH: 360 ft.
Max Solids: 3.5″

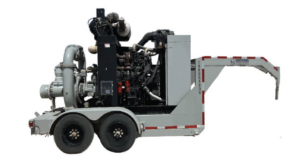

12x8 High Pressure Vac Assist Diesel-Driven
Size: 12 x 8
Max Flow: 8,410 gpm
Max TDH: 456 ft.
Max Solids: 4″
12x10 High Pressure Vac Assist Diesel-Driven
Size: 12 x 10
Max Flow: 11000 gpm
Max TDH: 550 ft.
Max Solids: 4″
Specialty Pumps
Stainless Steel Pumps manage a wide range of chemicals and temperatures.
Variable Frequency Drives (VFDs) create efficiencies and provide energy savings.
Electric Driven Pumps reduce operating costs and are a reliable pump option.

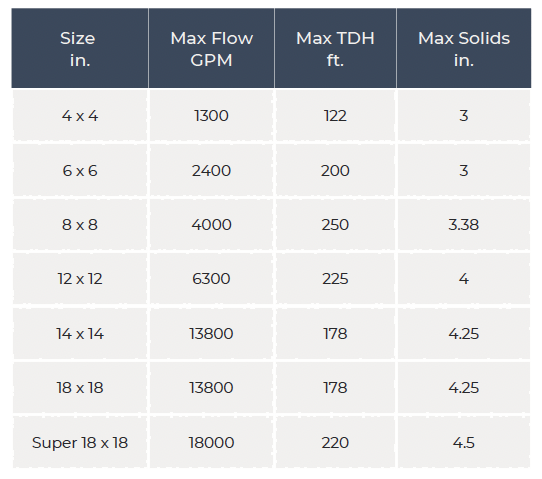

Sound-Attenuated Pumps
Registering at a comfortable 68 dBa at 23 feet, silent pumps deliver all the performance of our standard fleet in a fully enclosed, skid, or trailer-mounted unit.
4" Vac Assist dBa Silencer Diesel Driven
Size: 4 x 4
Max Flow: 1200 gpm
Max TDH: 128 ft.
Max Solids: 3″
6" Vac Assist dBa Silencer Diesel-Driven
Size: 6 x 6
Max Flow: 2400 gpm
Max TDH: 200 ft.
Max Solids: 3″
8" Vac Assist dBa Silencer Diesel-Driven
Size: 8 x 8
Max Flow: 4000 gpm
Max TDH: 250 ft.
Max Solids: 3.38″
12" Vac Assist dBa Silencer Diesel-Driven
Size: 12 x 12
Max Flow: 6300 gpm
Max TDH: 225 ft.
Max Solids: 4″
14" Vac Assist dBa Silencer Diesel-Driven
Size: 14 x 14
Max Flow: 13800 gpm
Max TDH: 178 ft.
Max Solids: 4.25″
18" Vac Assist dBa Silencer Diesel-Driven
Size: 18 x 18
Max Flow: 13800 gpm
Max TDH: 178 ft.
Max Solids: 4.25″
Super 18" Vac Assist dBa Silencer Diesel-Driven
Size: 18 x 18
Max Flow: 19000 gpm
Max TDH: 220 ft.
Max Solids: 4.5″

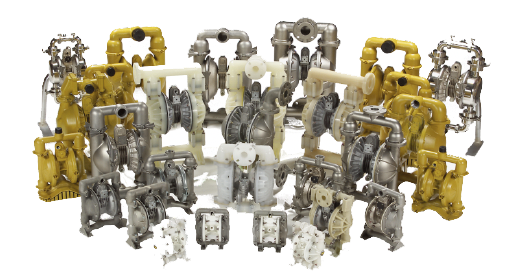

Air-Operated Diaphragm Pumps
These easy-to-install, portable pumps are a versatile option for a variety of pump applications. With various material construction and sizes available, let NTE help find the right AOD pump to meet your intermittent fluid transfer demands.

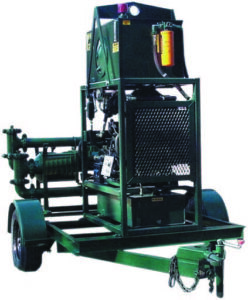

Sludgemaster Pumps
The Sludgemaster is designed to pump highly viscous materials and the toughest slurries with ease.
- 4″ Suction & Discharge
- 250 GPM Max Flow
- 346′ Max TDH
- 3.5″ Solids Handling Capacity

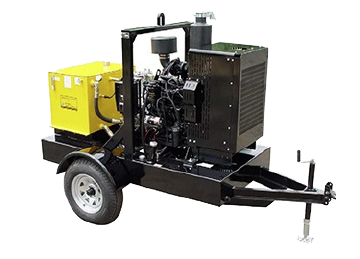

Hydraulic Submersible Pumps
These easy-to-install, portable pumps are a versatile option for a variety of pump applications. With various material construction and sizes available, let NTE help find the right AOD pump to meet your intermittent fluid transfer demands.
Electric Submersible Pumps
Electric submersible pumps are capable of handling all types of hazardousand non-hazardous fluids as well as viscous slurries and sludges with ease.
- 2 – 10″ Sizes
- Max Flow 5,500 GPM
- Max 340′ TDH/147 PSI
- 2 – 94 Horsepower
- Auto Start/Stop Control Panel and FloatSwitches
- Built-In Thermal Overload Protection
- Stainless Steel Models Available
